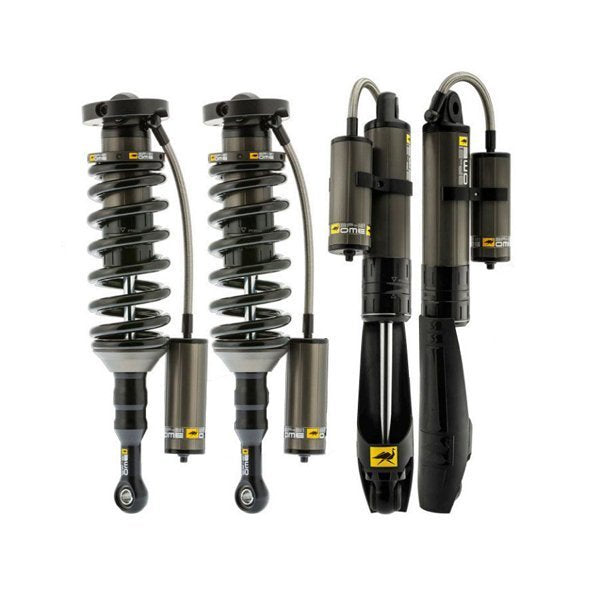

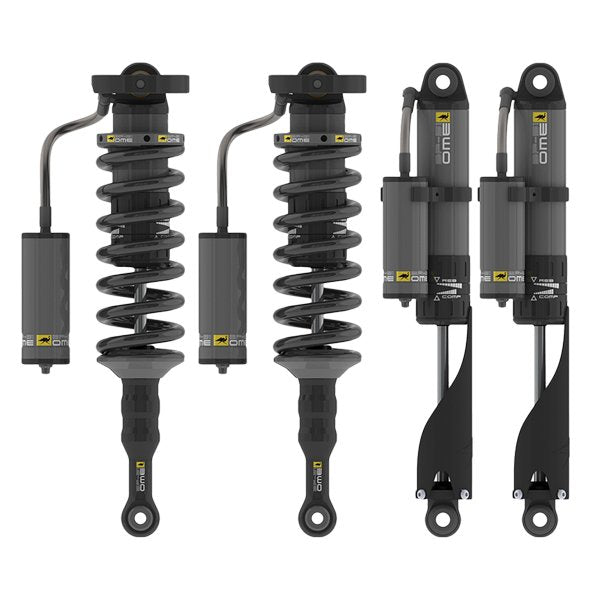

ARB OME BP51 Suspension Kit (200 Series Land Cruiser)

OME-BP51200 - Old Man Emu BP51 Suspension Kit 200 Series for Toyota Land Cruiser

• Old Man Emu brings racing technology to every day adventures: BP-51 (Bypass 51mm diameter bore) shock absorbers feature revolutionary, patent pending technology developed to deliver unparalleled on and off road performance. Developed and extensively tested under the harshest conditions in Australia, these big bore, position sensitive bypass shock absorbers with remote reservoir are designed to bolt onto your vehicle without any vehicle modifications and combine considerable ride comfort around town with significant amounts of end-zone damping for exceptional chassis control and handling off road. The damping performance is easily adjustable across a wide range of rebound and compression, resulting in significant changes to the ride performance of your vehicle, enabling a custom tune to suit the conditions and vehicle set up. The body, reservoir and components are all made from 6061 T6 aluminum, Type 3 40 micron hard anodized ensuring exceptional heat dissipation, corrosion resistance and resistance to stone damage. Not only designed, developed and tested entirely by ARB's team of Old Man Emu ride engineers, all BP-51 shock absorbers are manufactured in-house by ARB. In order to achieve this, significant investment has been made in state of the art machinery providing ARB total control of the manufacturing process to ensure the highest possible quality. ;

  Features & Benefits

  • Independent adjustability of both rebound and compression
  • Durable Dash 6 high-temperature Teflon hose optimum oil flow
  • Large, Teflon-lined spherical bearings
  • Quality oversized rubber bushings result in excellent longevity
  • Impact-resistant polyethylene guard prevents damage to shaft
  • Hard chromed, ground piston shaft for strength and durability
  • Heavy-load capacity for aftermarket bumper, winch and cargo
  • High-quality X5K grade steel coil, for use on coil over models
  • Adjustable front coilover, suitable for no weight and a front bumper
  • Suits a rear bumper or rear weight
  • A 6061 grade aluminum top hat

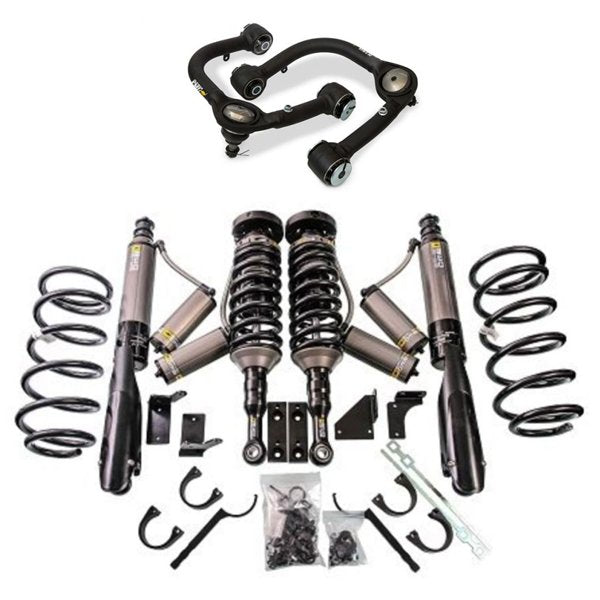

  Kit Components

  • VM80010005 BP-51 Shock Fitting Kit, 1
  • VM80010003 BP-51 Shock Fitting Kit, 1
  • BP5190003R Front BP-51 Coilover for Right Side, 1
  • BP5190003L Front BP-51 Coilover for Left Side, 1
  • BP5160026 Rear BP-51 Bypass Shock Absorber, 2

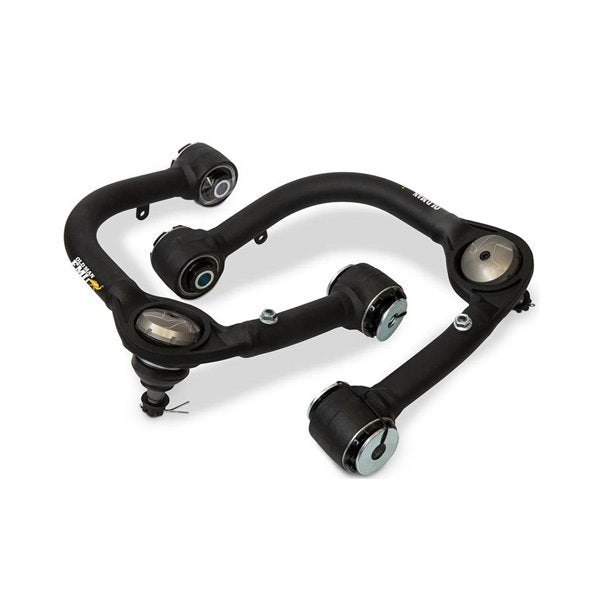

  • UCA0001 Upper Control Arms, 1
  Rear Coil Options:

  • OME 2721 Coils - Medium Load  0 Lift
  • OME 2722 Coils - Medium Load  +.75" Lift
  • OME 2723 Coils - Constant 440 lbs. +.75" Lift
  • OME 2724 Coils - Constant 880 lbs. +.75" Lift
  • OME 2725 Coils - Constant 1300 lbs. +.75" Lift
